Oil Level Switch: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Ground Cable From Battery
    G08579605Courtesy of SUBARU OF AMERICA, INC.
  2. Lift up the vehicle.
  3. Remove the under cover. Refer to REMOVAL .
  4. Drain the engine oil. Refer to REPLACEMENT .
  5. Disconnect the oil level switch connector from the engine harness, and remove the clip (A) securing the harness.

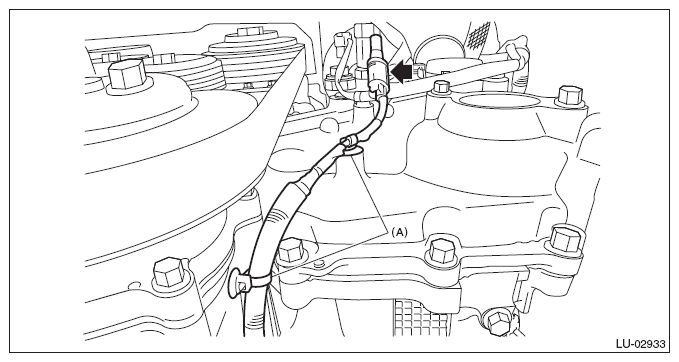

    Fig 2: Locating Oil Level Switch Connector
    G08580533Courtesy of SUBARU OF AMERICA, INC.
  6. Remove clip (A) from the oil pan upper, and remove the oil level switch.

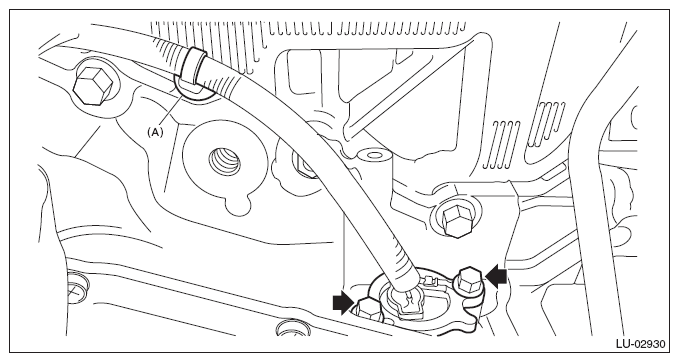

    Fig 3: Locating Oil Lever Switch Harness Securing Bolt
    G08580513Courtesy of SUBARU OF AMERICA, INC.
