Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Applying Liquid Gasket To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

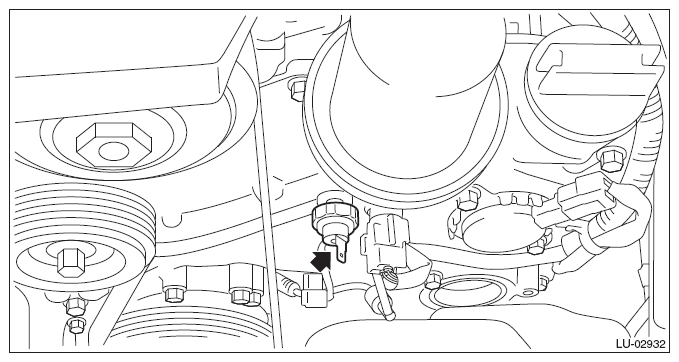

Fig 2: Locating Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.

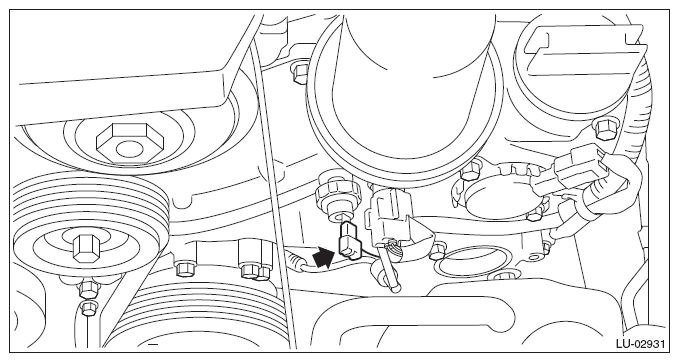

Fig 3: Locating Oil Pressure Switch Terminal
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal.

Fig 4: Disconnecting/Connecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
