Engine Mounting: Installation

Slide the radiator to the right and left, and install the front mounting bracket.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Fig 1: Locating Front Mounting Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Make pins on the lower side of radiator be fitted into the radiator lower cushions.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 2: Locating Radiator Upper Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach the grille bracket.

Fig 3: Locating Grille Bracket Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the engine mounting bracket onto the engine.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Fig 4: Locating Engine Mounting Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front cushion rubber to the front mounting bracket and engine mounting bracket.
Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

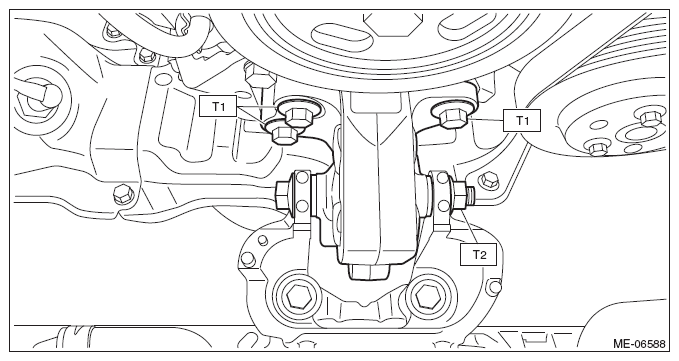

Fig 5: Front Cushion Rubber And Engine Mounting Bracket Mounting Bolts With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Remove the lifting device and wire ropes.

Fig 6: Lifting Engine Using Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator main fan motor assembly and radiator sub fan motor assembly. Refer to INSTALLATION and INSTALLATION .
Connect the battery ground terminal.

Fig 7: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Change the front hood damper mounting position from (B) to (A), and close the front hood.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 8: Identifying Front Hood Damper Mounting Positions
Courtesy of SUBARU OF AMERICA, INC.
