Cylinder Block 1

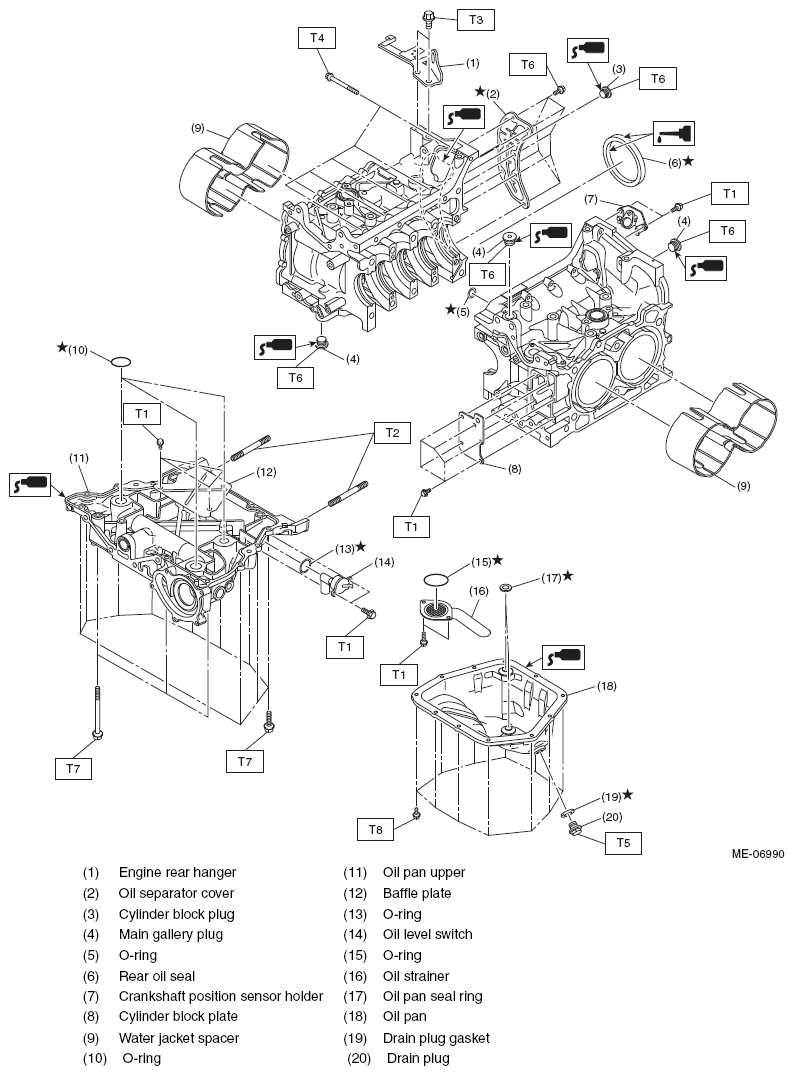

Fig 1: Identifying Cylinder Block 1 And Related Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 21 (2.1, 15.5)

T4: 25 (2.5, 18.4)

T5: 41.7 (4.3, 30.8)

T6: Refer to  CYLINDER BLOCK  .

T7: Refer to  INSTALLATION  .

T8: Refer to  OIL PAN  .
