Engine Mounting

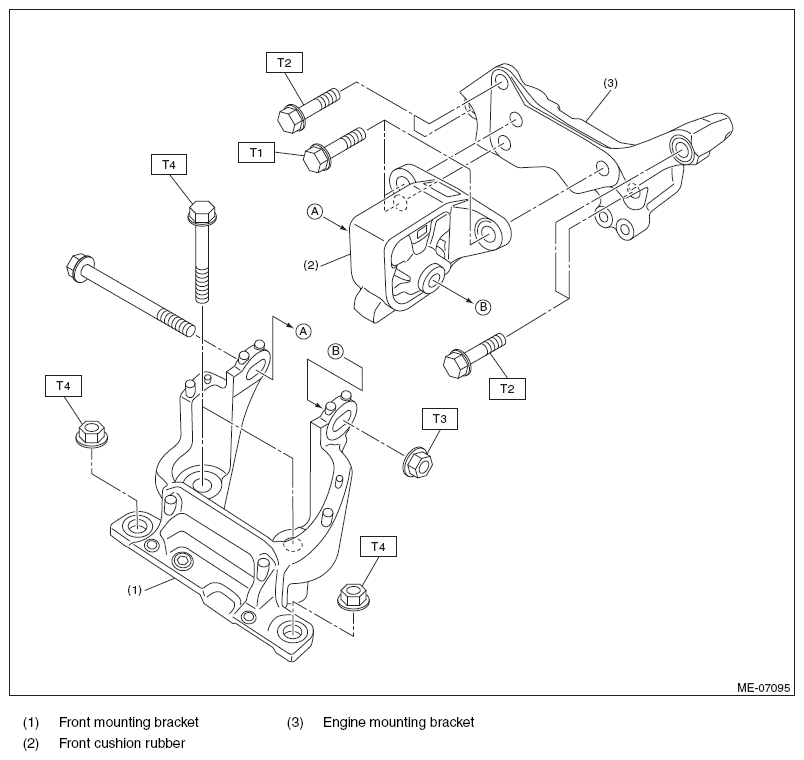

Fig 1: Identifying Front Mounting Bracket, Engine Mounting Bracket And Front Cushion Rubber

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)

T3: 45 (4.6, 33.2)

T4: 60 (6.1, 44.3)
