Rocker Cover

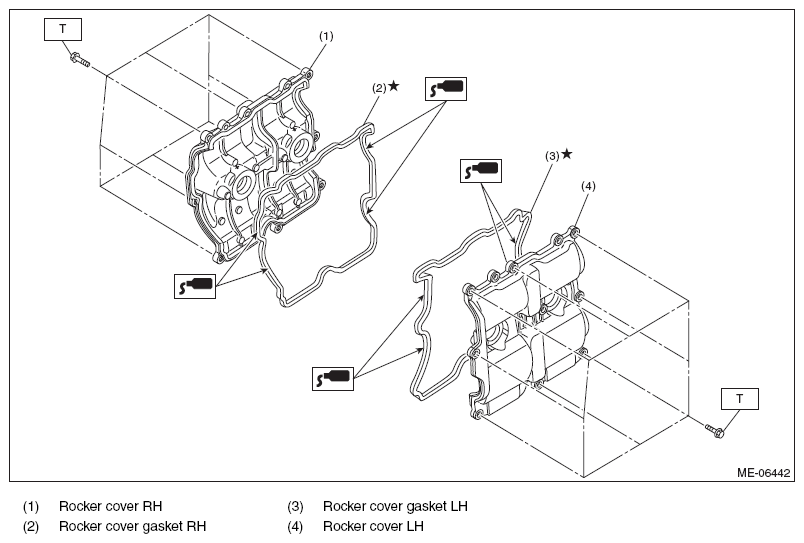

Fig 1: Identifying Rocker Cover And Gasket (LH And RH)
G08579930Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Refer to  INSTALLATION  .
