Clutch Assembly

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

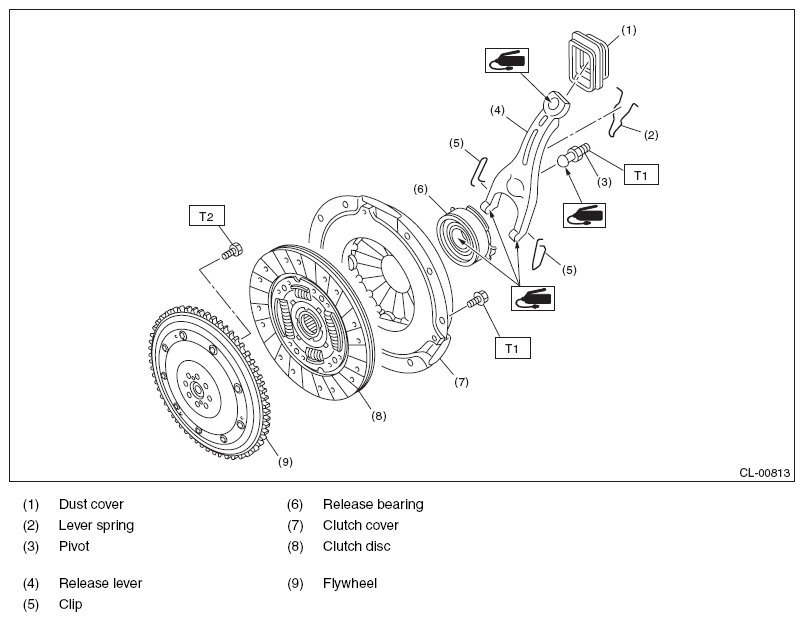

Fig 1: Clutch Assembly Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: < Refer to INSTALLATION , Flywheel. >
