Master Cylinder: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Replace the O-ring for the master cylinder with a new part.
CAUTION:
Be careful not to install the O-ring in the wrong location.

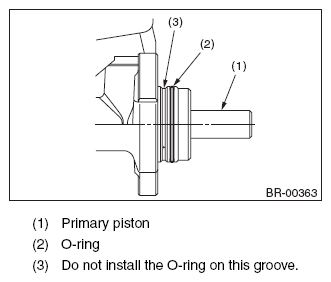

Fig 1: Caution For Installing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
Tightening torque:

Master cylinder mounting nut

13 N.m (1.33 kgf-m, 9.6 ft-lb)

Piping flare nut

19 N.m (1.94 kgf-m, 14 ft-lb)

CAUTION:
Be sure to use recommended brake fluid.
Bleed air from the brake system. < Refer to PROCEDURE , Air Bleeding. >
