Rear Disc Brake Assembly: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply a thin coat of Molykote M7439 or grease contained in the pad kit to the support.

Fig 1: Identifying Grease Applying Areas On Pad Kit To Support
Courtesy of SUBARU OF AMERICA, INC.
Install the support to the housing.
Tightening torque:

66 N.m (6.73 kgf-m, 48.7 ft-lb)
Apply a thin coat of Molykote M7439 or grease contained in the pad kit to the pad clip.

Fig 2: Identifying Grease Applying Areas On Pad Kit To Pad Clip
Courtesy of SUBARU OF AMERICA, INC.

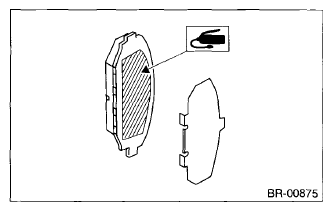

Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit to the contact surface between the pad and shim.

Fig 3: Identifying Grease Applying Areas On Pad Kit To Contact Surface Between Pad And Shim
Courtesy of SUBARU OF AMERICA, INC.

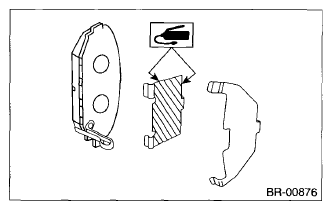

Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit to both surfaces of the pad inner shim.

Fig 4: Identifying Grease Applying Areas On Pad Kit To Pad Inner Shim Surfaces
Courtesy of SUBARU OF AMERICA, INC.
Install the pad to support.
Install the caliper body to the support.
Tightening torque:

27 N.m (2.75 kgf-m, 19.9 ft-lb)
Install the brake hose bracket.
Tightening torque:

33 N.m (3.36 kgf-m, 24.3 ft-lb)
Connect the brake hose using a new brake hose gasket.
Tightening torque:

18 N.m (1.84 kgf-m, 13.3 ft-lb)
Bleed air from the brake system. < Refer to PROCEDURE , Air Bleeding. >
