Stop Light Switch: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Disconnect the stop light switch connector.
  3. Loosen the nuts, remove the screw of the stop light switch (1), and remove stop light switch.

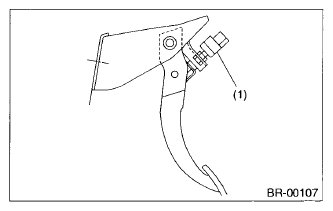

    Fig 1: Identifying Stop Light Switch
    G07666408Courtesy of SUBARU OF AMERICA, INC.
