Back-Up Light Switch (Mt Model)
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

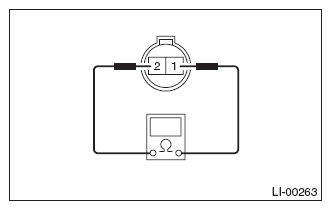

- Measure the resistance between back-up light switch terminals.
Courtesy of SUBARU OF AMERICA, INC.
Switch position Terminal No. Standard When shift lever is set in reverse position 1 and 2 Less than 1 Ω Other positions 1 MΩ or more - Replace the back-up light switch if the inspection result is not within the standard value.
