Daytime Running Light Relay
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

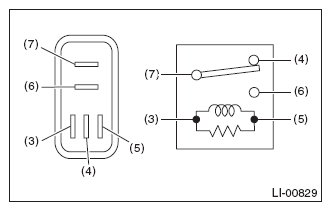

- Check the resistance between the daytime running relay terminals when connecting terminal No. 3 to the battery positive terminal and terminal No. 5 to the battery ground terminal.
Continuity Terminal No. Standard Yes 7 and 6 Less than 1 Ω No 1 MΩ or more Yes 7 and 4 1 MΩ or more No Less than 1 Ω - Replace the daytime running light relay if the inspection result is not within the standard value.
