Fog Light Aiming

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Before checking the fog light beam level, be sure of the following:
- The area around the fog light has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.

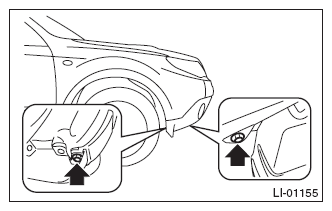

Remove the clips and turn over the mud guard.

Fig 1: Locating Mud Guard Clips
Courtesy of SUBARU OF AMERICA, INC.

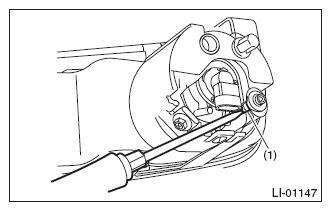

Adjust the front fog light pattern by inserting a Philips screwdriver to the adjusting hole (1).

Fig 2: Adjusting Front Fog Light Pattern By Inserting Screwdriver To Adjusting Hole
Courtesy of SUBARU OF AMERICA, INC.

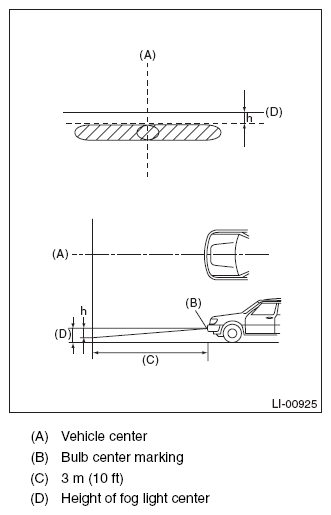

Fig 3: Identifying Height Of Fog Light Center
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

60 (2.38)
