Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the fog light cover.

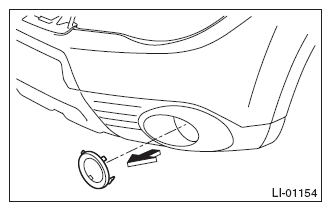

Fig 1: Removing Fog Light Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the screw and clips, and turn over the mud guard.

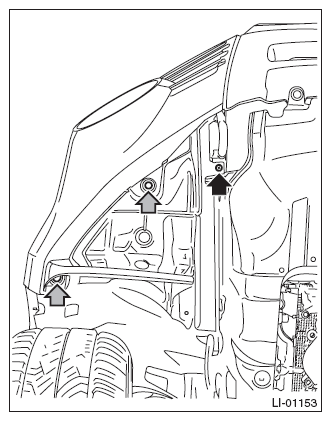

Fig 2: Locating Mud Guard Screw And Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the bulb connector.
Remove the plastic nut and bolt, and then detach the fog light assembly.

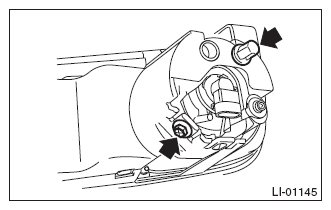

Fig 3: Locating Fog Light Assembly Plastic Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Remove the bracket as required.

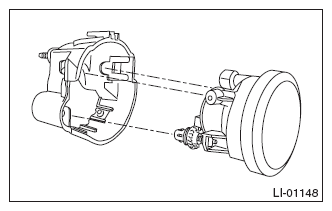

Fig 4: Identifying Fog Light Assembly Bracket

Courtesy of SUBARU OF AMERICA, INC.
