Front Fog Light Relay
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

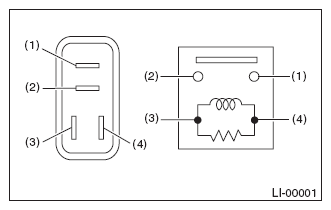

- Connect terminal No. 4 to the battery positive terminal and the terminal No. 3 to the battery negative terminal, and check the resistance value between the front fog light relay terminals.
Continuity Terminal No. Standard Yes 1 and 2 Less than 1 Ω No 1 MΩ or more - If the result of the inspection is not at the standard value, replace the front fog light relay.
