Spot Map Light Slide Switch
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the spot map light switch to OFF.

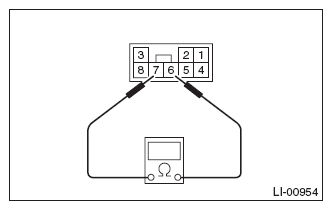

- Measure the resistance between spot map light slide switch terminals.
Courtesy of SUBARU OF AMERICA, INC.
Switch position Terminal No. Standard OFF - 1 MΩ or more DOOR 6 and 7 1.5±0.5 Ω Replace the overhead console assembly if the inspection result is not within the standard value.
