Spot Map Light Switch
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

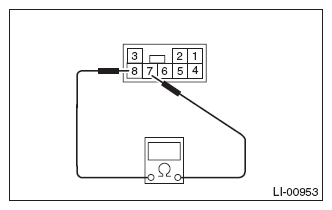

- Measure the resistance between spot map light terminals.
Courtesy of SUBARU OF AMERICA, INC.
| Switch position |
Terminal No. |
Standard |
| OFF |
- |
1 MΩ or more |
| ON |
7 and 8 |
1.5±0.5 Ω |
- Replace the overhead console assembly if the inspection result is not within the standard value.
