Side Airbag Module: Installation
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Refer to "CAUTION" of "General Description" before handling the airbag module. < Refer to CAUTION , General Description. >
- Be sure to perform the system calibration for occupant detection system after passenger's seat installation. < Refer to OPERATION , System Calibration (Rezeroing). >

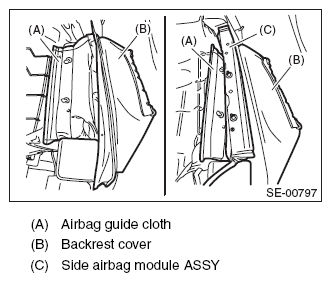

- When installing the side airbag module assembly, be sure to put the side airbag module between backrest cover and airbag guide cloth.
Courtesy of SUBARU OF AMERICA, INC.
Besides, when the backrest cover is not installed securely, the side airbag module may not be activated properly, therefore keep strictly to the following procedure.
- Be careful not to stain or damage the backrest cover during assembly.
- Do not reuse hog rings.
- Secure the hog ring using hog ring pliers.
- Install the hog rings to the specified points securely and make sure that no wrinkle or twisting on backrest cover.
- Make sure that there is no foreign matter on side airbag module.
- Install the side airbag module (A) to backrest frame assembly.
Tightening torque:
6 N.m (0.61 kgf-m, 4.4 ft-lb)
- Install the side airbag harness to backrest frame assembly.
- Install the backrest cover.
- Install the side airbag harness to the clips on the back of the seat cushion assembly and on the slide rail.
- Recline the seat or slide it backward and forward, and check there is no contact between the seat backrest assembly, cushion cover assembly and side airbag harness.
- Install the front seat to the vehicle body.
Tightening torque:
Front seat assembly: < Refer to FRONT SEAT LH , COMPONENT, General Description. >
