Oil Pump

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Non-turbo model

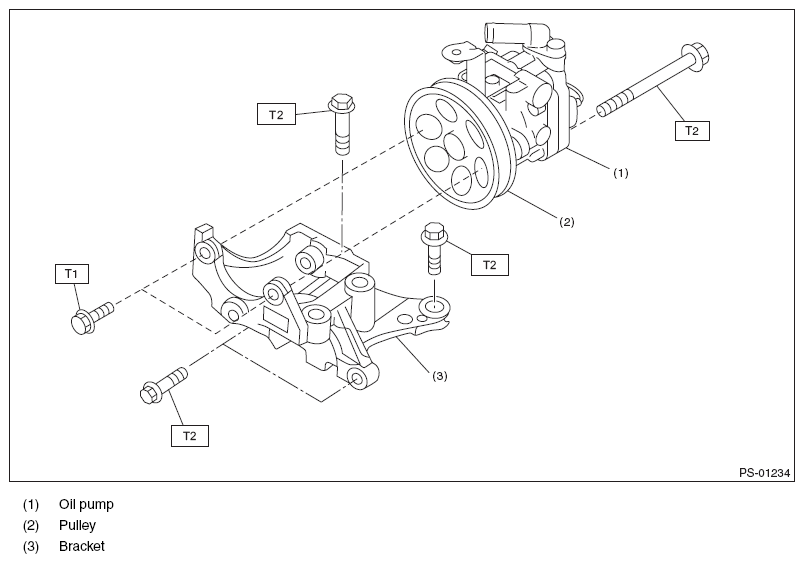

Fig 1: Oil Pump, Pulley And Bracket Mounting Bolts With Torque Specifications (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 36 (3.67, 26.6)

Turbo model

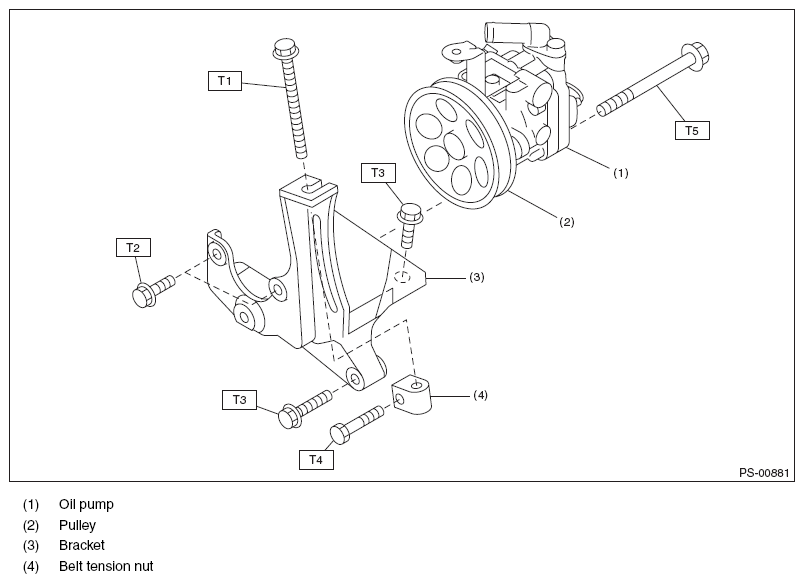

Fig 2: Oil Pump, Pulley And Bracket Mounting Bolts With Torque Specifications (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.0 (0.82, 5.8)

T2: 16 (1.63, 11.8)

T3: 22 (2.24, 16.2)

T4: 25 (2.55, 18.4)

T5: 48 (4.89, 35.4)
