Pipe Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Lift up the vehicle, and then remove the under cover. < Refer to REMOVAL , Front Under Cover. >
Remove the front crossmember support plate and jack-up plate.
- Large type

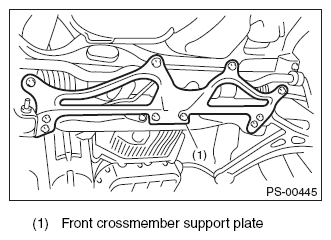

  Fig 1: Identifying Front Crossmember Support Plate (Large Type)
  Courtesy of SUBARU OF AMERICA, INC.
- Small type

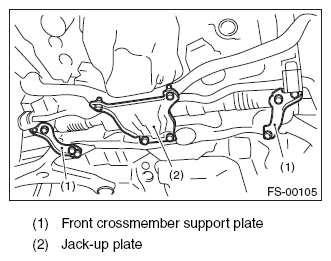

  Fig 2: Identifying Crossmember Support Plate And Jack-Up Plate (Small Type)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the one pipe joint at the center of the gearbox, and connect the vinyl hose to the pipe and the joint. Discharge the fluid by turning the steering wheel fully clockwise and counterclockwise. Discharge the fluid similarly from other pipes.

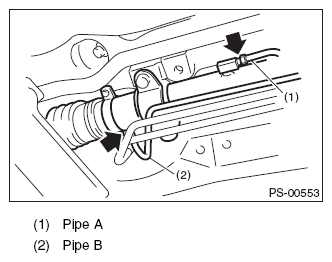

Fig 3: Locating Fluid Discharge Pipes (A And B)
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp E from return hose and pressure hose.

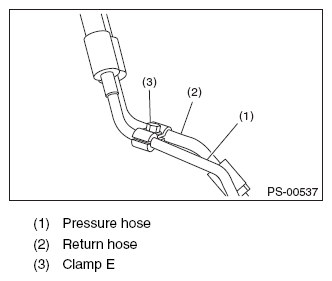

Fig 4: Identifying Return Pipe, Pressure Hose And Clamp E
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the return hose from return pipe and disconnect the pressure hose from feed pipe.

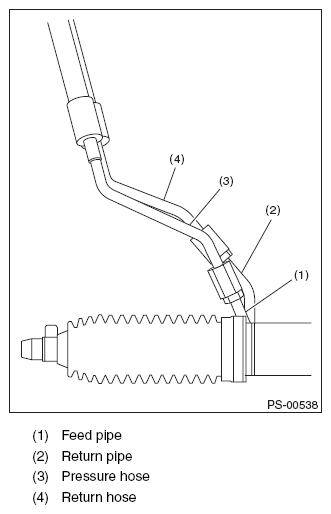

Fig 5: Identifying Feed Pipe, Return Pipe, Pressure Hose And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct.
- Non-turbo model: < Refer to REMOVAL , Air Intake Duct. >
- Turbo model: < Refer to REMOVAL , Air Intake Duct. >
Disconnect the suction hose and pressure hose from oil pump.
- Non-turbo model

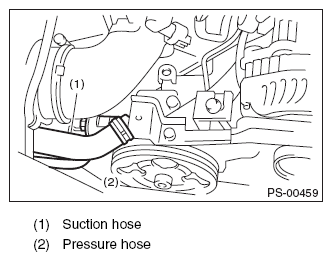

  Fig 6: Identifying Suction Hose And Pressure Hose (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

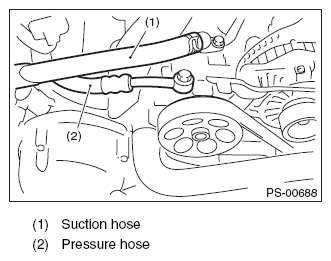

  Fig 7: Identifying Suction Hose And Pressure Hose (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the suction hose and return hose from the reservoir tank.

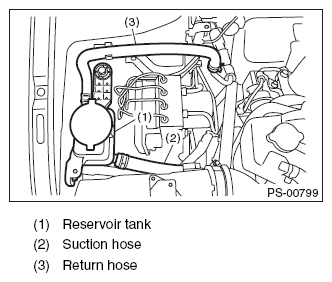

Fig 8: Identifying Reservoir Tank, Suction Hose And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the hose bracket and take out the hose assembly from vehicle.

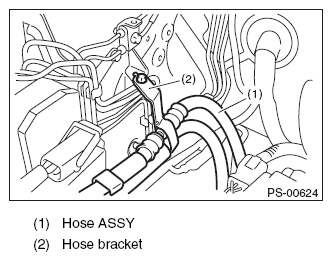

Fig 9: Identifying Hose Assembly And Bracket
Courtesy of SUBARU OF AMERICA, INC.
