Steering Column: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

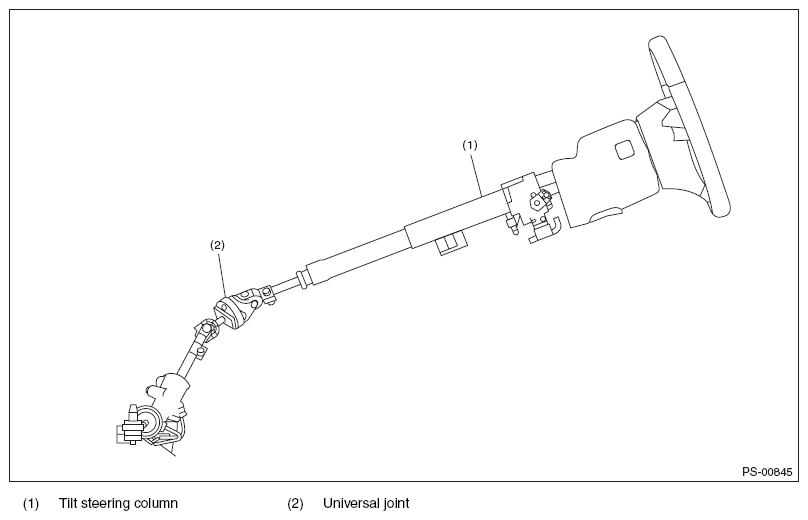

Fig 1: Identifying Tilt Steering Column And Universal Joint
G08565759Courtesy of SUBARU OF AMERICA, INC.
  1. Adjust the tilt position of the steering column to the highest position and lock the tilt lever.
  2. Remove the steering wheel. < Refer to REMOVAL , Steering Wheel. >
  3. Remove the universal joint. < Refer to REMOVAL , Universal Joint. >
  4. Remove the instrument panel lower cover under.
  5. Remove the knee guard panel.
  6. Remove the instrument panel lower cover upper.
  7. Remove the screws which secure the column cover lower, then remove the column cover lower.
  8. Remove all connectors from the steering column.
  9. Remove the bolts under instrument panel securing the steering column.
    Fig 2: Locating Steering Column Mounting Bolts
    G05662996Courtesy of SUBARU OF AMERICA, INC.
  10. Pull out the steering shaft assembly from the hole on toe board.
    CAUTION:
    • Always remove the universal joint before removing the steering column installation bolt to avoid damage to the universal joint.
    • Be sure to remove the universal joint before removing the parts, if the relative position between steering shaft and gearbox changes when removing steering shaft assembly or when lowering it and gearbox for servicing other parts.
    • Do not loosen the tilt lever when the steering column is not secured to the vehicle.
