Front Wiper

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

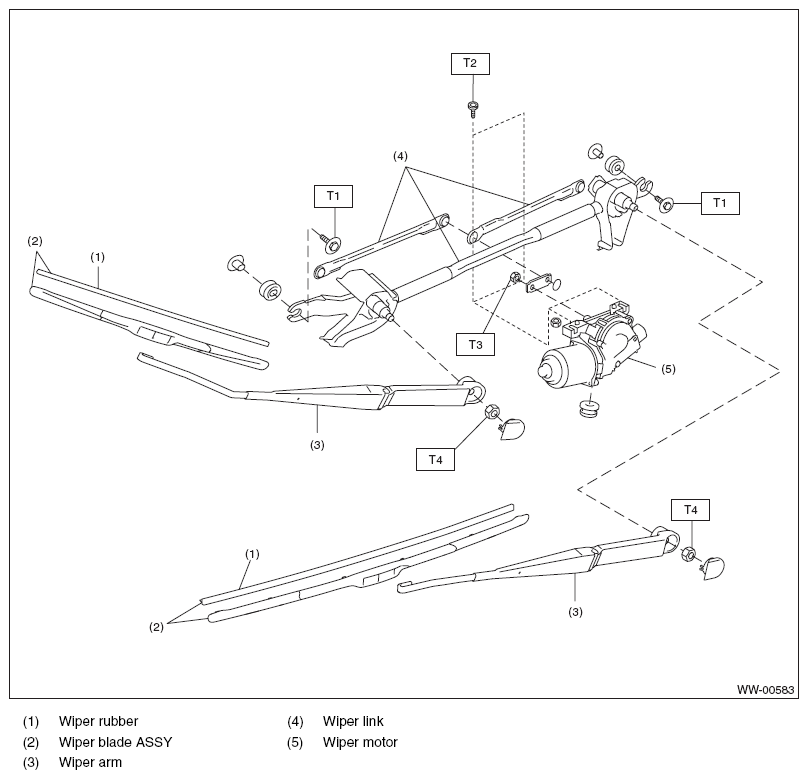

Fig 1: Front Wiper Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 6.0 (0.61, 4.4)

T2: 7.5 (0.76, 5.5)

T3: < Refer to INSTALLATION , Front Wiper Motor and Link. >

T4: 22 (2.24, 16.2)
