General Tool

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

TOOL NAME	REMARKS
TORX® T50	Used for removing and installing the wiper motor assembly.
Circuit tester	Used for checking voltage and continuity.

NOTE: Refer to the data described below, prepare the materials to make a front washer nozzle adjustment tool.

Fig 1: Identifying Front Washer Nozzle Adjustment Tool Dimensions

Courtesy of SUBARU OF AMERICA, INC.

Materials

Vertebra of wiper blade which is to be discarded
Vinyl tape

Steps of making a front washer nozzle adjustment tool

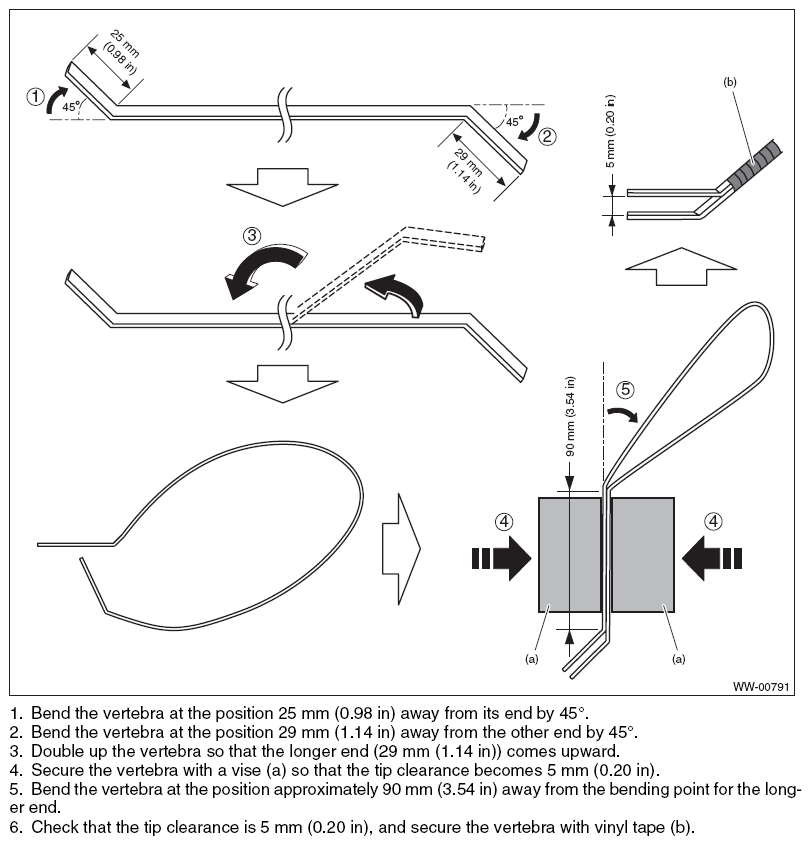

Fig 2: Identifying Front Washer Nozzle Adjustment Tool Making Sequence

Courtesy of SUBARU OF AMERICA, INC.

Bend the vertebra at the position 25 mm (0.98 in) away from its end by 45°.
Bend the vertebra at the position 29 mm (1.14 in) away from the other end by 45°.
Double up the vertebra so that the longer end (29 mm (1.14 in)) comes upward.
Secure the vertebra with a vise (a) so that the tip clearance becomes 5 mm (0.20 in).
Bend the vertebra at the position approximately 90 mm (3.54 in) away from the bending point for the longer end.
Check that the tip clearance is 5 mm (0.20 in), and secure the vertebra with vinyl tape (b).
