Front Exhaust Pipe

WARNING: This page is about a different variant/trim than selected.

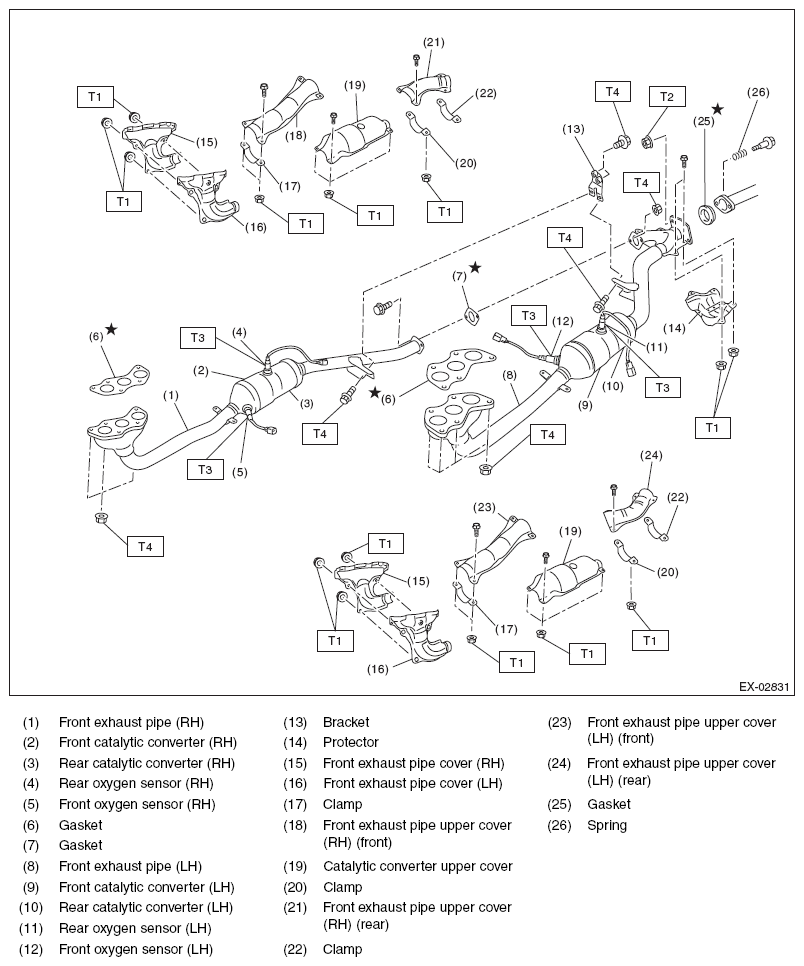

Fig 1: Front Exhaust Pipe And Related Replacement Components Mounting Bolts With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 21 (2.1, 15.5)

T4: 30 (3.1, 22.1)
