Section 7 (Engine Cooling System (H6DO)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Install the radiator lower cushion.
Install the radiator to vehicle.
NOTE: Insert pins on the lower side of radiator into the radiator lower cushions on vehicle side.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

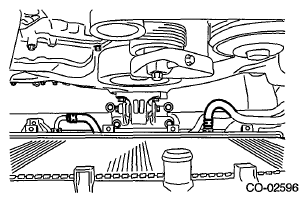

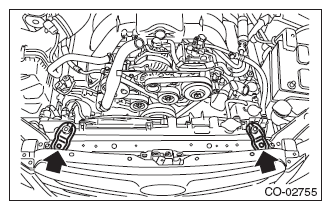

Fig 1: Locating Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF radiator inlet hose and outlet hose.
NOTE: Use new ATF radiator inlet hose and outlet hose.

Fig 2: Identifying ATF Radiator Inlet Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator main fan & fan motor and radiator sub fan & fan motor. Refer to INSTALLATION and INSTALLATION .
Attach the grille bracket.

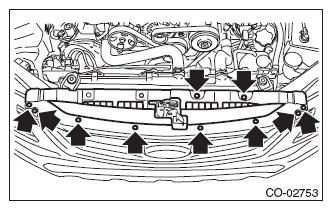

Fig 3: Locating Grille Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Connect the radiator outlet hose to the radiator lower.

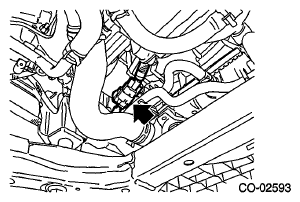

Fig 4: Identifying Radiator Lower Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the integrated connector of radiator main fan & fan motor and radiator sub fan & fan motor.

Fig 5: Locating Radiator Main Fan & Fan Motor And Radiator Sub Fan & Fan Motor Integrated Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT .
Check the ATF level and replenish it if necessary. Refer to INSPECTION .
Install the air intake duct. Refer to INSTALLATION .
Install the collector cover.
