Secondary Speed Sensor Replacement

Secondary Speed Sensor

REMOVAL

CAUTION:
^ Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
^ When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.

1) Lift up the vehicle.

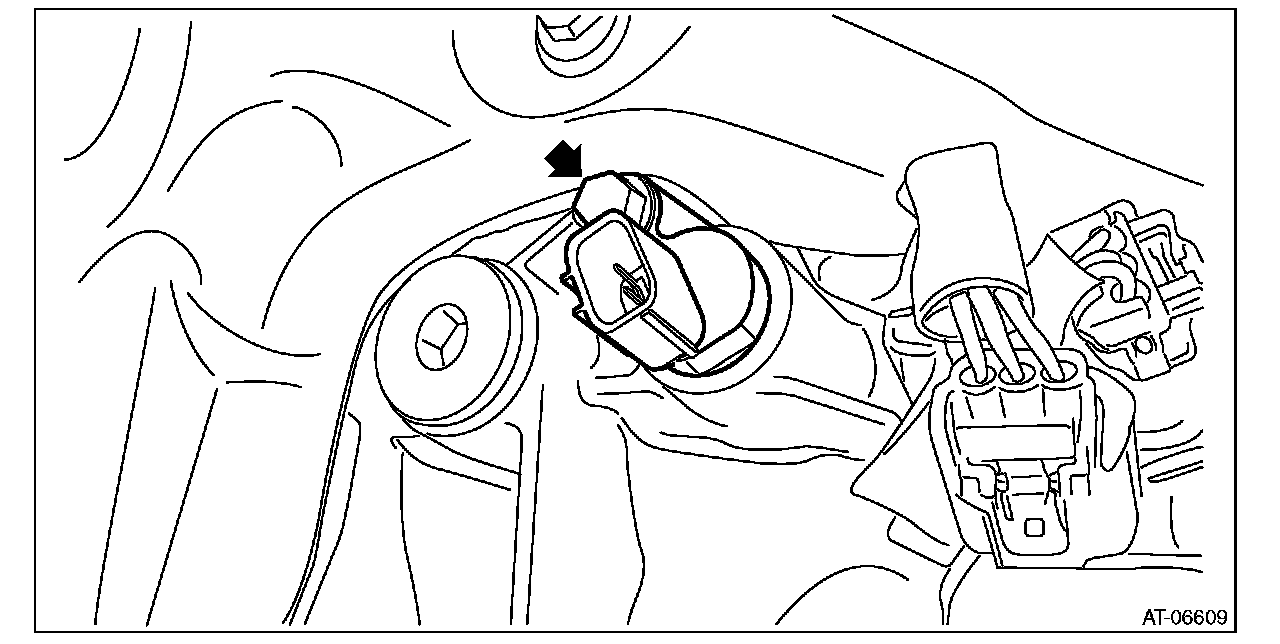

2) Remove the harness connector from secondary speed sensor.
3) Remove the secondary speed sensor.





INSTALLATION

CAUTION:
^ Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
^ After installing the secondary speed sensor, adjust the CVTF level.

Install in the reverse order of removal.

NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.

Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)
