Radiator Cooling Fan Control Module: Service and Repair

Radiator Fan Control Unit

REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the radiator fan control unit.

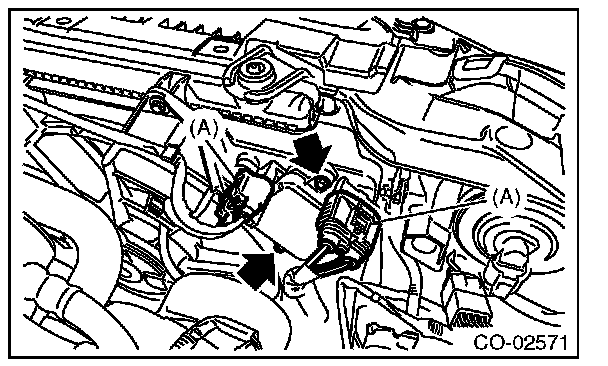

(1) Disconnect the connector (A) from the radiator fan control unit.
(2) Remove screws which secure the radiator fan control unit.





INSTALLATION

Install in the reverse order of removal.

Tightening torque:
2.6 Nm (0.3 kgf-m, 1.9 ft-lb)
