Fluid Pressure Sensor/Switch: Service and Repair

Secondary Pressure Sensor

REMOVAL

CAUTION:
^ Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part.
^ When secondary pressure sensor is removed, CVTF leaks. After installing the secondary pressure sensor, adjust the CVTF level.

1) Disconnect the ground cable from battery.
2) Lift up the vehicle.

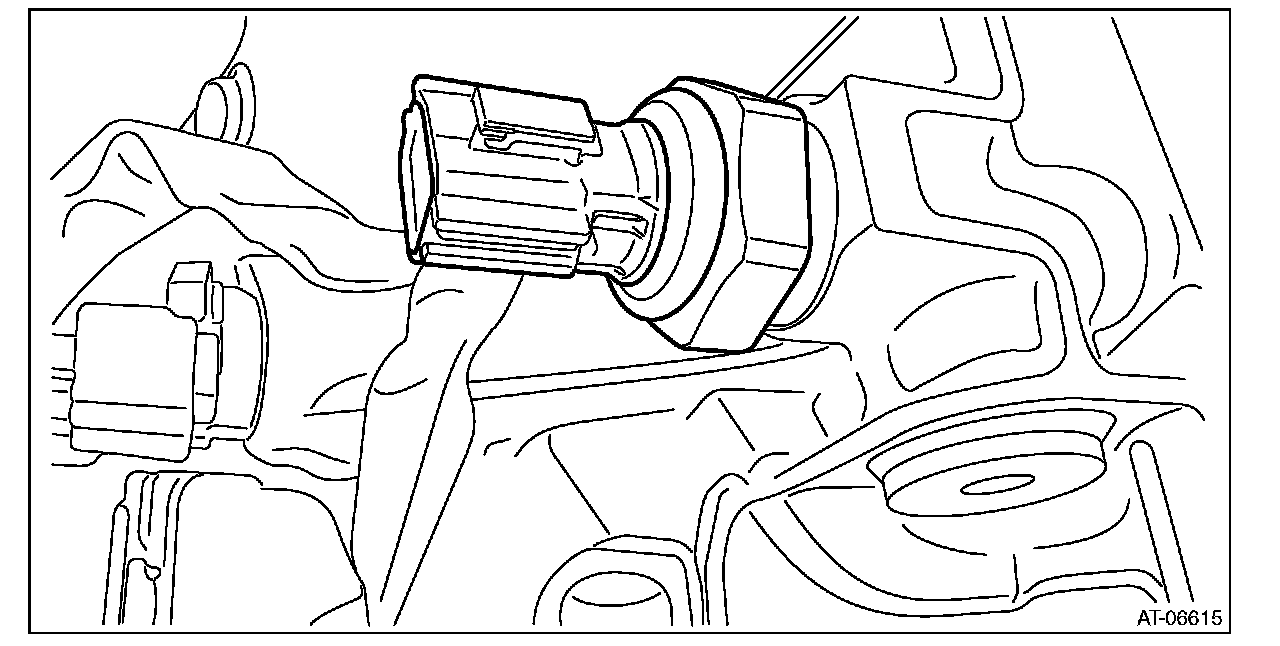

3) Remove the secondary pressure sensor connector.
4) Remove the secondary pressure sensor.





INSTALLATION

CAUTION:
^ Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part.
^ After installing the secondary pressure sensor, adjust the CVTF level.

Install in the reverse order of removal.

NOTE:
Use new O-rings.

Tightening torque:
39 Nm (4.0 kgf-m, 28.8 ft-lb)
