Secondary Speed Sensor: Removal

CAUTION:
  • Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  • When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.
  1. Lift up the vehicle.
  2. Remove the harness connector from secondary speed sensor.
  3. Remove the secondary speed sensor.

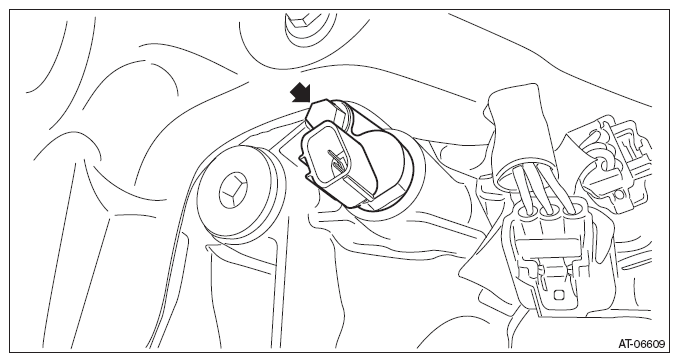

    Fig 1: Locating Secondary Speed Sensor Mounting Bolt
    G08317800Courtesy of SUBARU OF AMERICA, INC.
