Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim.
    1. Remove the trunk handle.
    2. Remove the clips and the trunk lid trim.

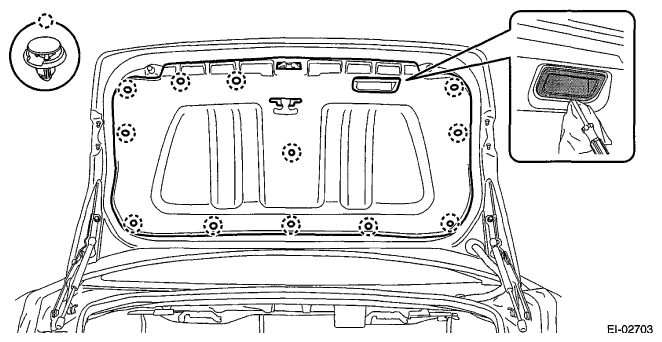

      Fig 1: Removing Trunk Lid Trim
      G06653627Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the trunk lid garnish.
    1. Remove the nut.
    2. Remove the clips and the trunk lid garnish.

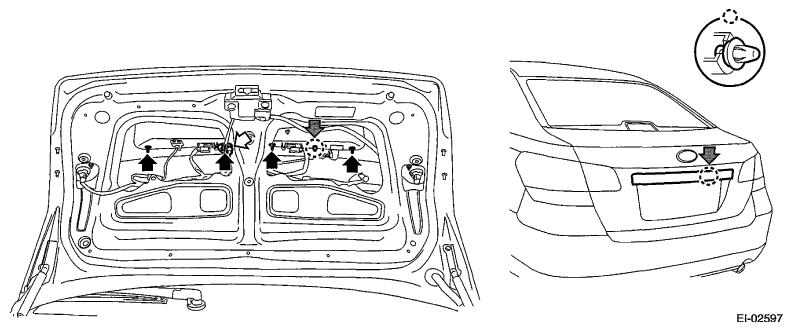

      Fig 2: Locating Trunk Lid Garnish Mounting Nuts And Clips
      G06653628Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rearview camera.
    CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
    1. Disconnect the rearview camera connector.
    2. Remove the bolt from the face of trunk.
    3. Disconnect the claws and then remove the rearview camera assembly.

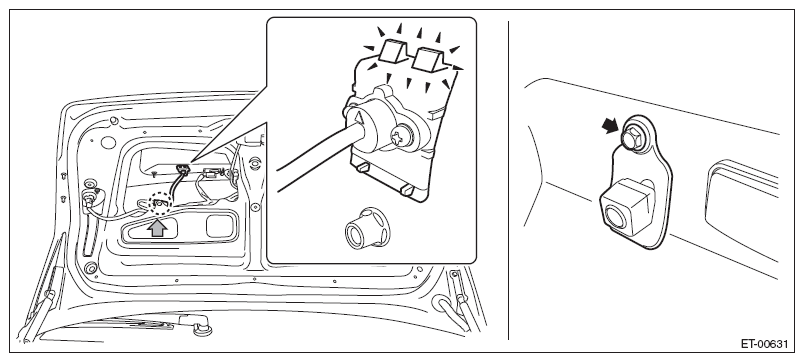

      Fig 3: Locating Trunk Face Mounting Bolt
      G08584629Courtesy of SUBARU OF AMERICA, INC.
