Outback Model

Disconnect the ground cable from battery.
Remove the rear gate trim.
1. Remove the rear gate upper trim.
  1. Remove the claws on the trim edge.
  2. Disconnect the claws in the center of trim, and remove the rear gate upper trim.

    Fig 1: Removing Rear Gate Upper Trim
    Courtesy of SUBARU OF AMERICA, INC.
2. Remove the rear gate pillar trim.
  1. Release the claws.
  2. Remove the claws on the bottom of trim, and remove the rear gate pillar trim.

    Fig 2: Locating Rear Gate Pillar Trim Mounting Claws
    Courtesy of SUBARU OF AMERICA, INC.
3. Remove the hand grip of rear gate.
  CAUTION:
  - Be careful not to scratch the trim.
  - To protect the trim from damage, attach a protective tape to the tool in use.
  1. Insert a precision screwdriver (a).
  2. With the screwdriver inserted, move the precision screwdriver toward the claw and open the cap.
  3. Remove the screws and detach the hand grip.

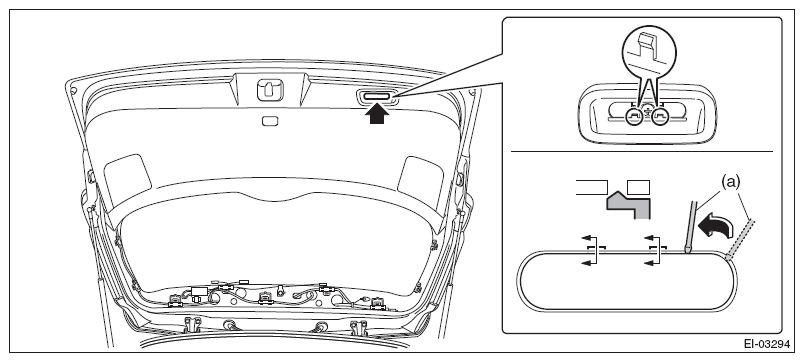

    Fig 3: Removing Rear Gate Hand Grip Using Screwdriver
    Courtesy of SUBARU OF AMERICA, INC.
4. Remove the rear gate lower trim.
  1. Remove the clips on both ends.
  2. Release the clips and remove the rear gate lower trim.

    Fig 4: Locating Rear Gate Lower Trim Mounting Clips
    Courtesy of SUBARU OF AMERICA, INC.
Remove the rear gate garnish.
1. Release the clips and claws, then detach the rear finisher light side cover.

  Fig 5: Identifying Rear Finisher Light Side Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the harness connector of license plate light assembly.
3. Remove the nuts.
4. Remove the clips, and remove the rear gate garnish.

  Fig 6: Locating Rear Gate Garnish Mounting Clips
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rearview camera assembly.
CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
1. Disconnect the rearview camera connector.
2. Remove the nut and bolt on the back side of rear gate.
3. Disconnect the claws (for temporary fastening) and remove the rearview camera assembly.

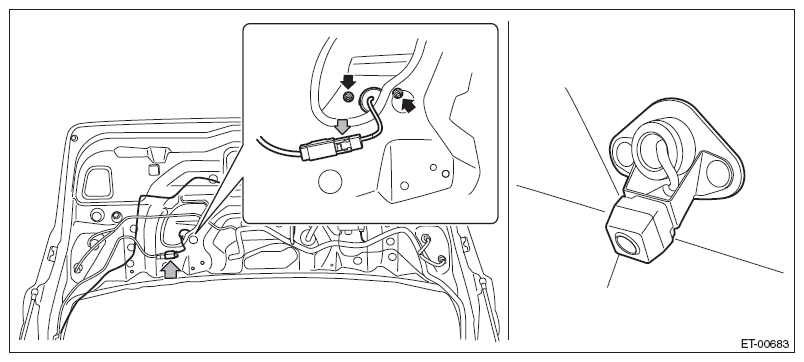

  Fig 7: Locating Rearview Camera Connector And Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.
