Control Module

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

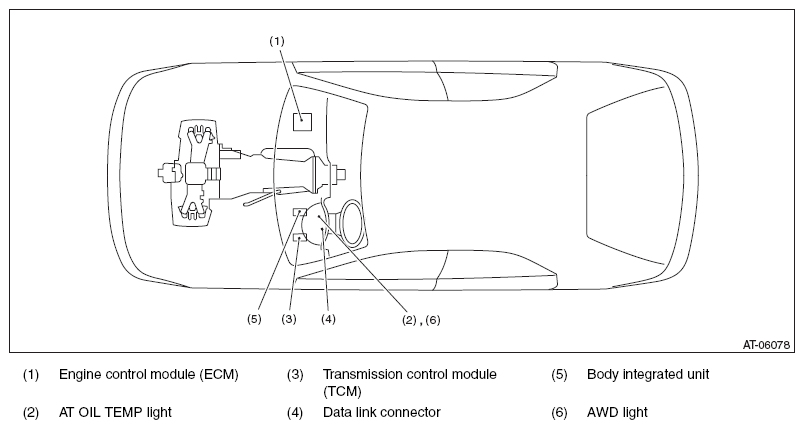

Fig 1: Control Module Electrical Component Location (1 Of 2)
G08564246Courtesy of SUBARU OF AMERICA, INC.

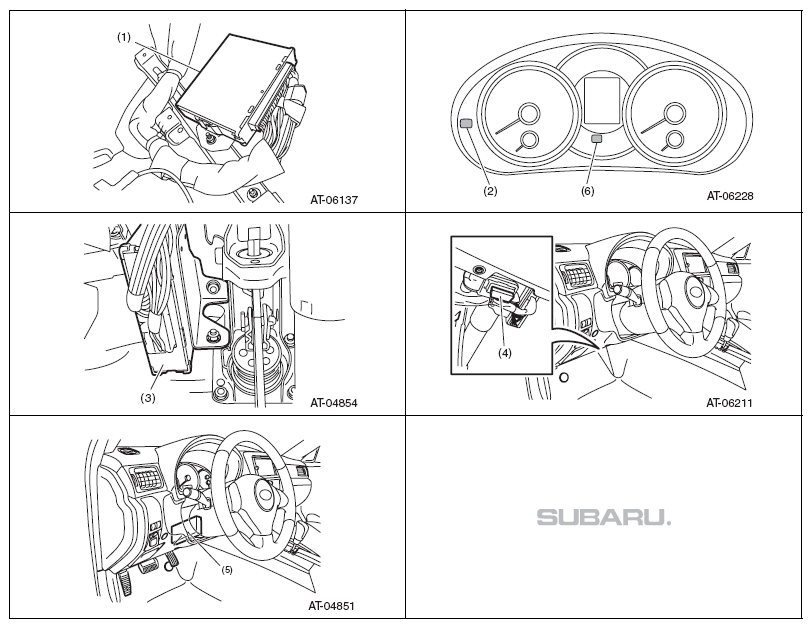

Fig 2: Control Module Electrical Component Location (2 Of 2)
G08564247Courtesy of SUBARU OF AMERICA, INC.
