Removal

Transmission Control Module (TCM)

REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the lower cover and then disconnect the connector.

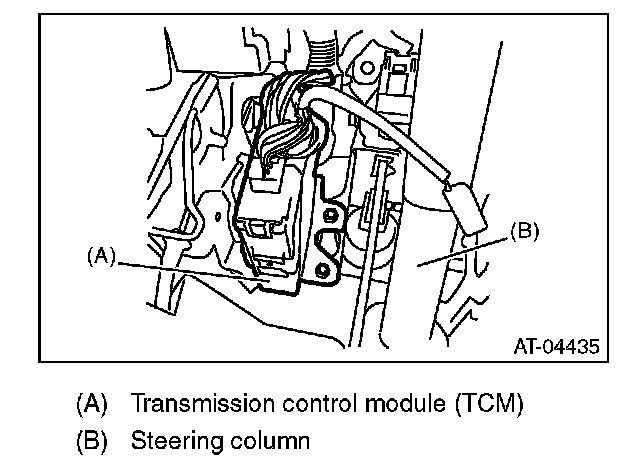

3) Disconnect the connector from TCM.





4) Remove the TCM.

NOTE:
Replace the TCM and bracket as a set.
