Diagnostic Method 1: Notes

Detect the malfunction by checking "Cumulative value of time when λ changes from lean → rich" in comparison to "Time during which diagnosis is in progress".

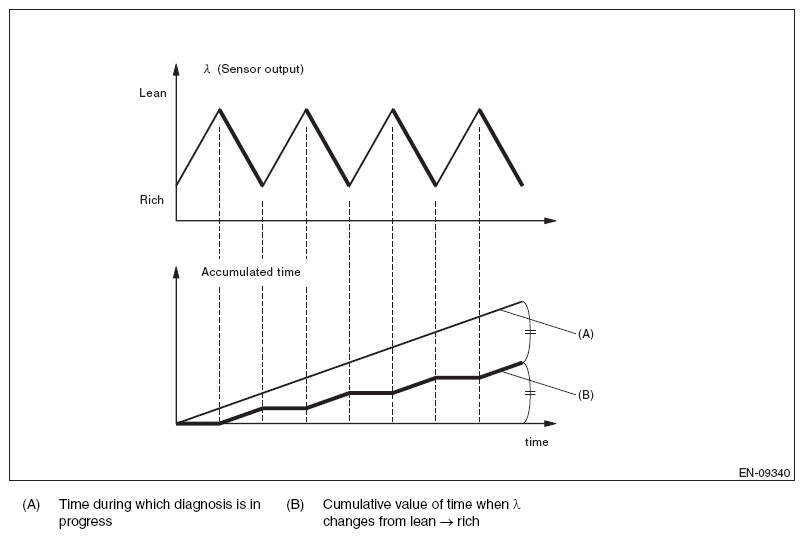

Fig 1: Sensor Output And Accumulated Time Graph

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

Judge as NG when the following conditions are established.
