Diagnostic Method 2: Notes

Detect the malfunction by the cumulative value obtained from the amount of variation in λ change.

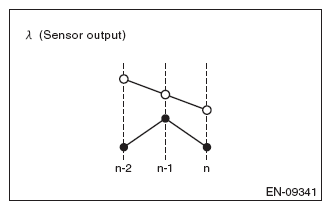

Fig 1: Sensor Output Graph (λ)

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

Judge as NG when the following conditions are established.
