Brake Control Brake Actuator Assembly: Assembly

Installation of brake actuator bolt cushion
1. Install 3 new brake actuator bolt cushions (A and B) to the actuator Assembly.

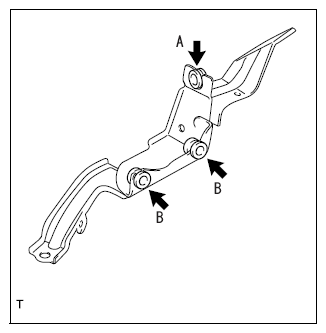

  Fig 1: Locating Brake Actuator Bolt Cushions
  Courtesy of SUBARU OF AMERICA, INC.
Installation of brake actuator bracket Assembly
1. With 3 new nuts and 3 new washers, install the brake actuator bracket Assembly to the brake actuator Assembly.
  Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

  CAUTION: New brake actuator Assembly is filled with brake fluid. Therefore, do not remove the hole plug until the brake tube is connected.

  Fig 2: Locating Brake Actuator Bracket Assembly Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.
