Brake Control Brake Actuator Assembly: Disassembly

Removal of brake actuator bracket Assembly
1. Remove 3 nuts and washers and then remove the brake actuator bracket Assembly from the brake actuator Assembly.

  Fig 1: Locating Brake Actuator Bracket Assembly Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of brake actuator bolt cushion
1. Remove 3 brake actuator bolt cushions from the brake actuator bracket Assembly.

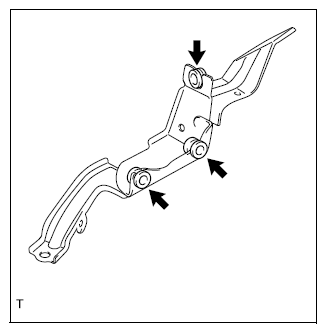

  Fig 2: Locating Brake Actuator Bolt Cushions
  Courtesy of SUBARU OF AMERICA, INC.
