Circuit Figure

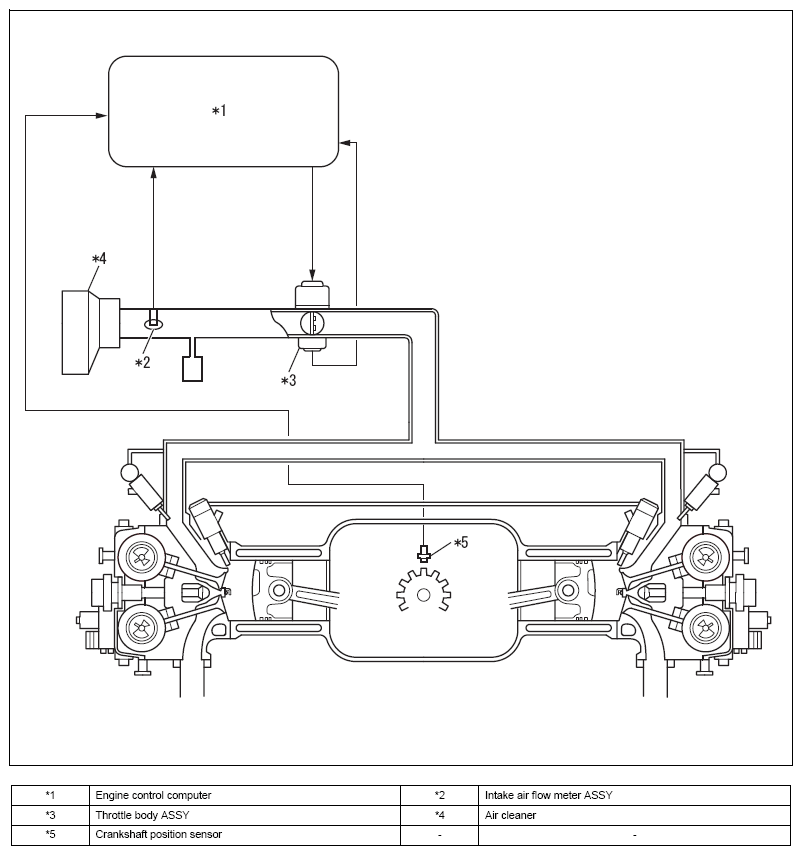

Fig 1: Intake System - Circuit Diagram (1 Of 2)
G08556490Courtesy of SUBARU OF AMERICA, INC.

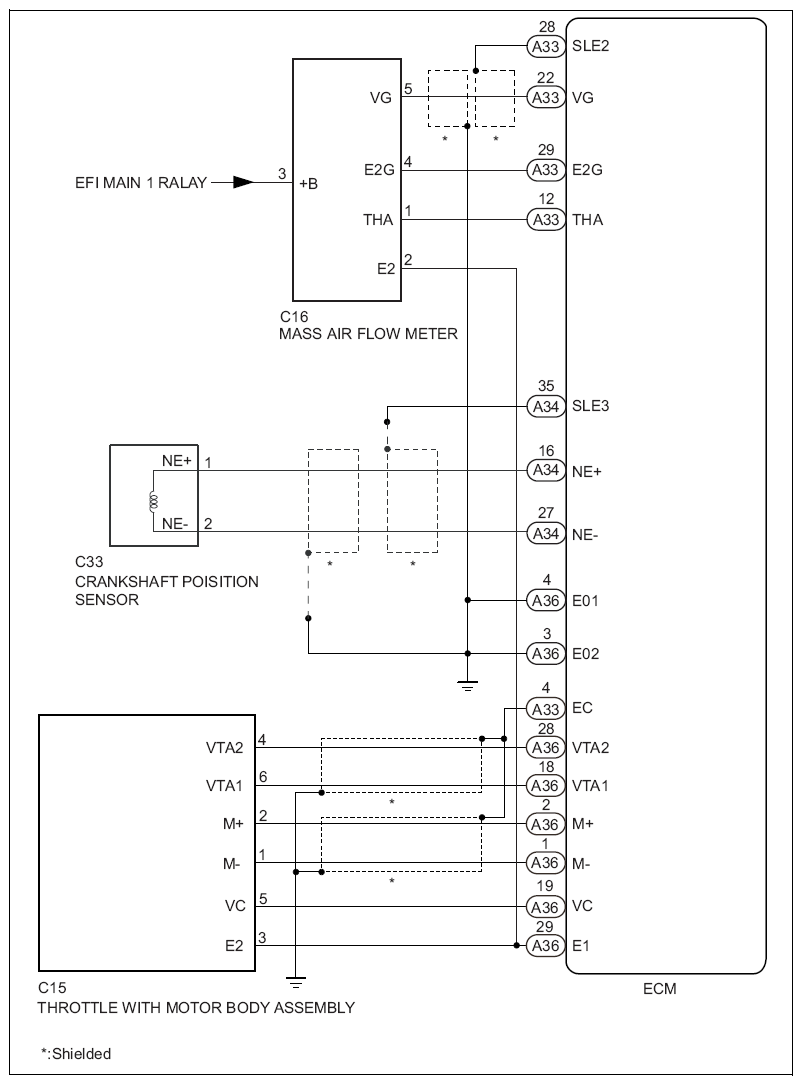

Fig 2: Intake System - Circuit Diagram (2 Of 2)
G08556491Courtesy of SUBARU OF AMERICA, INC.
