Exploded View

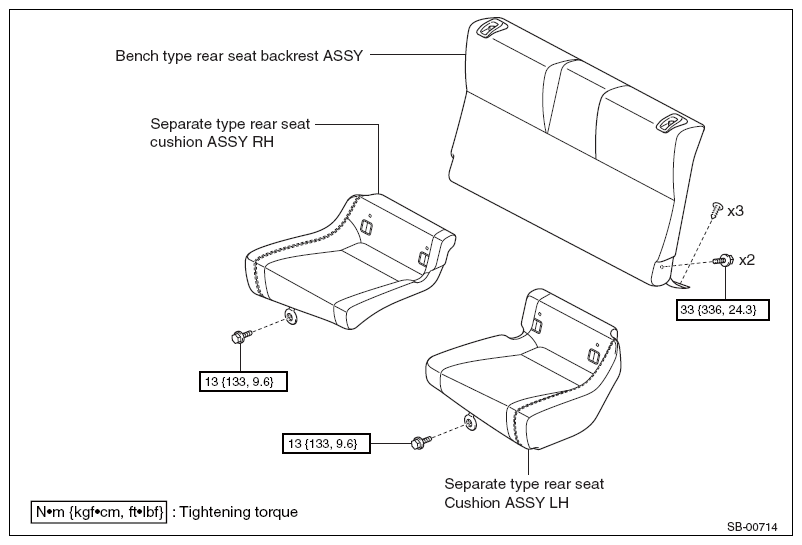

Fig 1: Exploded View Of Child Seat Restraining Device [ISO-FIX] (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

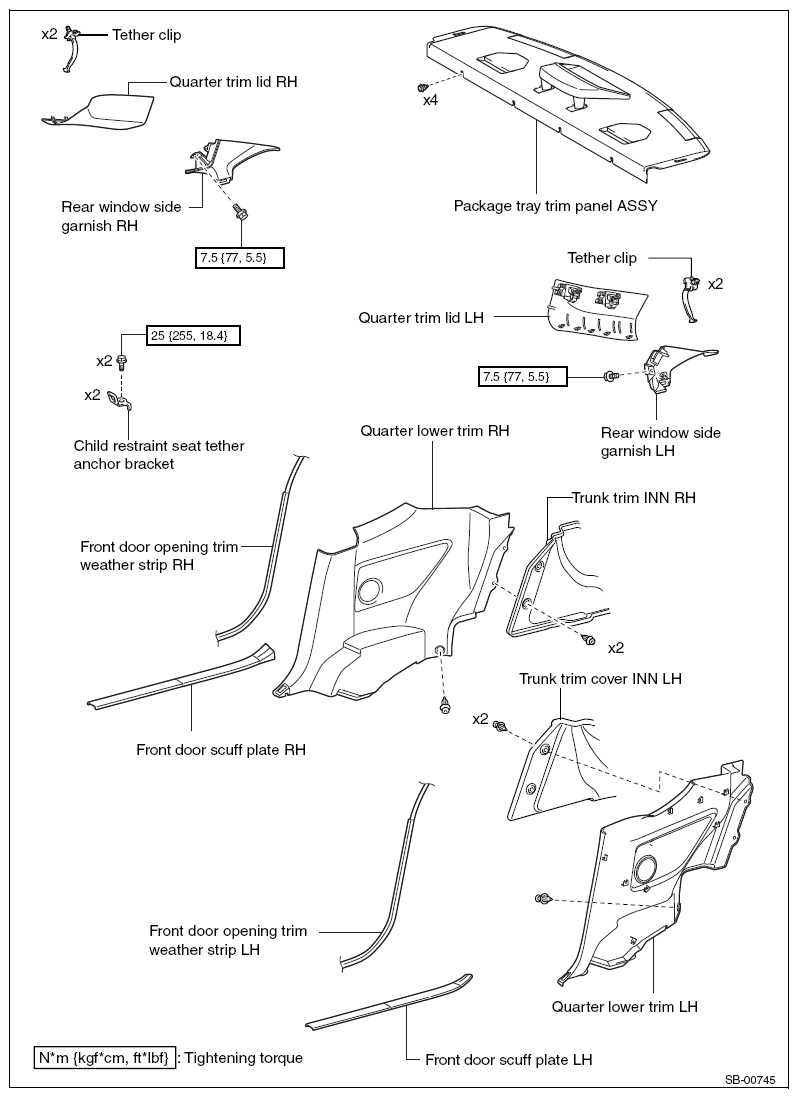

Fig 2: Exploded View Of Child Seat Restraining Device [ISO-FIX] (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
