Exploded View

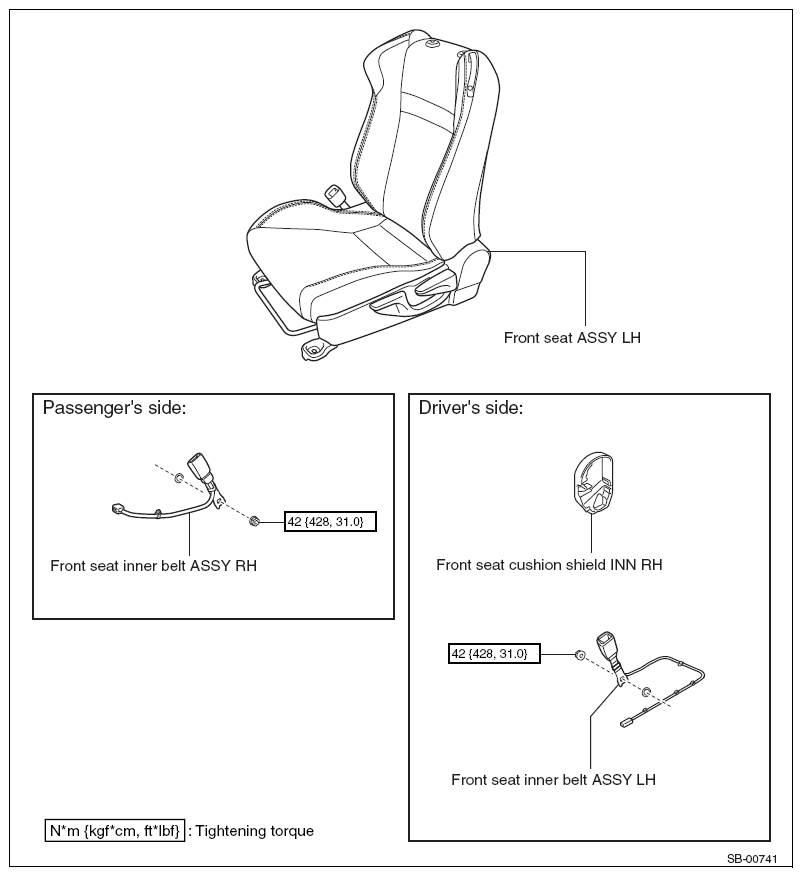

Fig 1: Exploded View Of Front Seat Inner Belt assembly
G08557828Courtesy of SUBARU OF AMERICA, INC.
NOTE: Vehicles with steering wheels on the left are mirrored.
