Engine Control System (Diagnostics) (H4DO): Electrical Component Location: Location: Sensor

Fig 1: Sensor Components Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Sensor Components Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

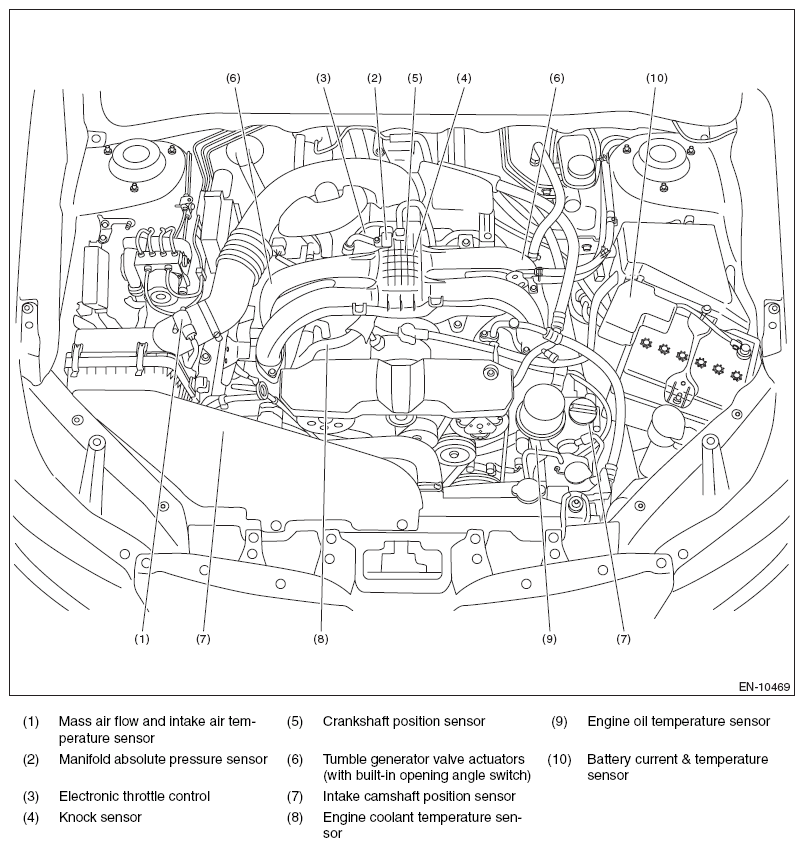

Fig 3: Sensor Components Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

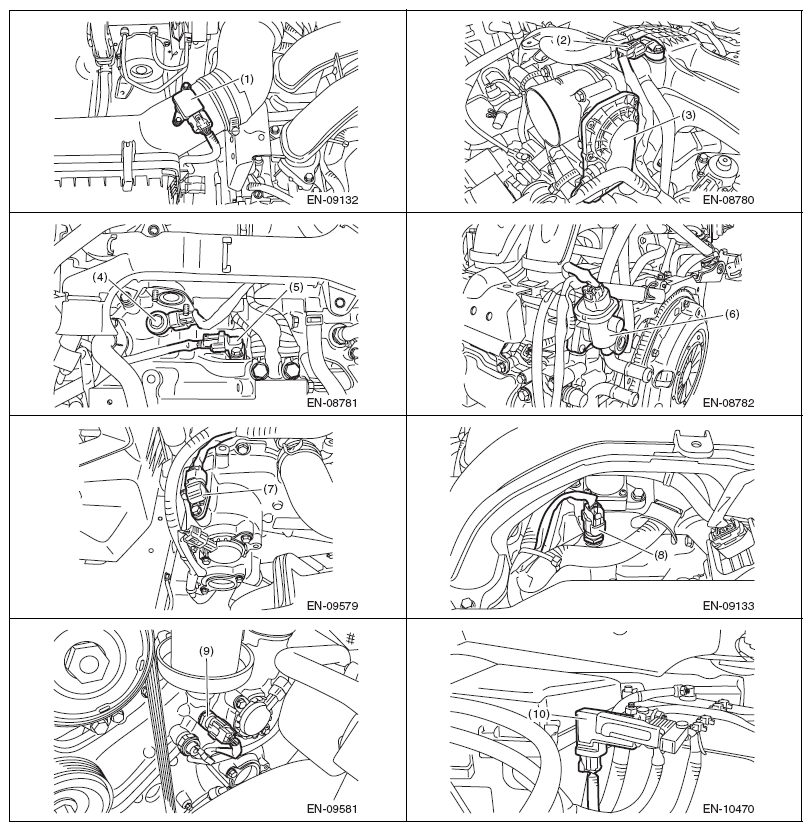

Fig 4: Sensor Components Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

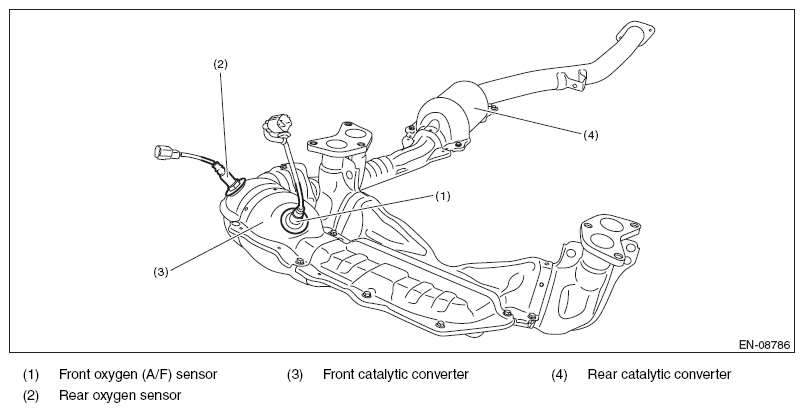

Fig 5: Sensor Components Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
