Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the screw and clips, and turn over the front side of the mud guard - front.

Fig 1: Removing Front Fog Light Assembly Screw And Clips
Courtesy of SUBARU OF AMERICA, INC.
From the bottom of the bumper face - front, remove the fog light assembly - front.
1. Disconnect the connector.
2. Remove the bolts and clips, and remove the fog light assembly - front.

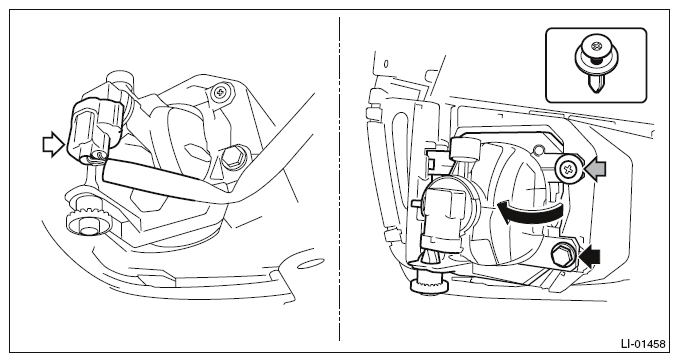

  Fig 2: Removing Front Fog Light Assembly
  Courtesy of SUBARU OF AMERICA, INC.
