Control Module I/O Signal: Wiring Diagram
WARNING:
This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

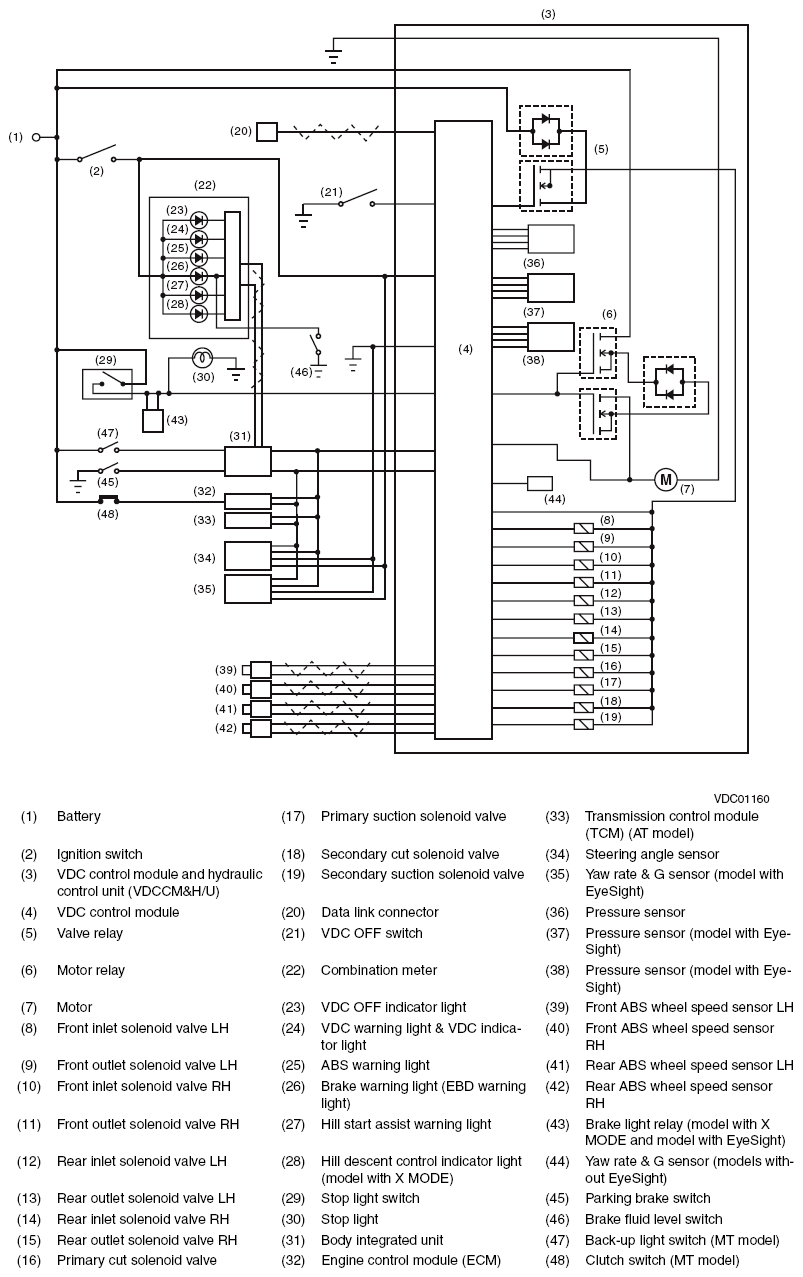

Fig 1: Control Module I/O Signal - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
