Keyless Entry Control Module: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the trim panel - rear apron RH and trim panel - rear quarter pillar UPR RH. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

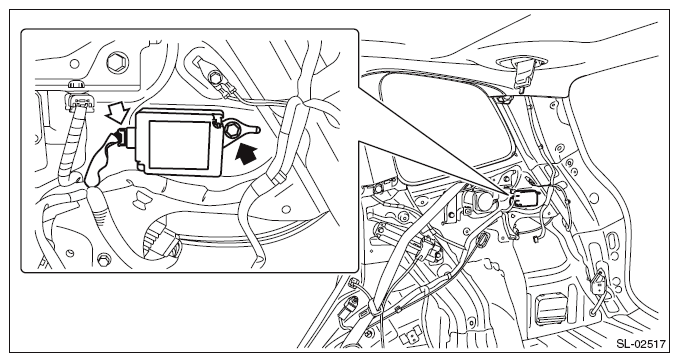

      Fig 1: Locating Keyless Entry Control Module
      G09483012Courtesy of SUBARU OF AMERICA, INC.
