Security Control Module: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Equipped on C0 and C5 models without keyless access.

Remove the heater and cooling unit assembly. < Ref. to REMOVAL , Heater and Cooling Unit. >
Remove the security control module.
1. Disconnect the connector.
2. Remove the nuts, and remove the security control module.

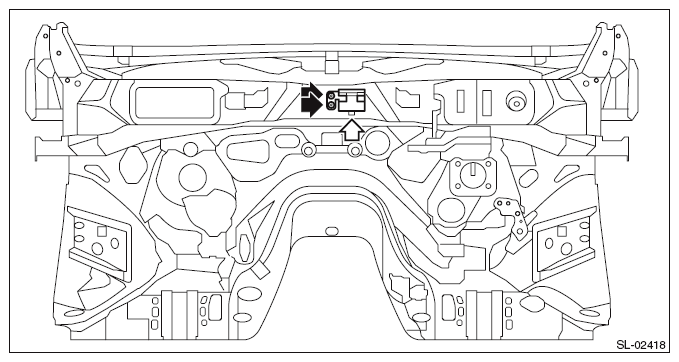

  Fig 1: Locating Security Control Module Screws
  Courtesy of SUBARU OF AMERICA, INC.
