Reflex Reflector: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

From behind the bumper face - rear, release the nuts and claws and remove the reflex reflector assembly.

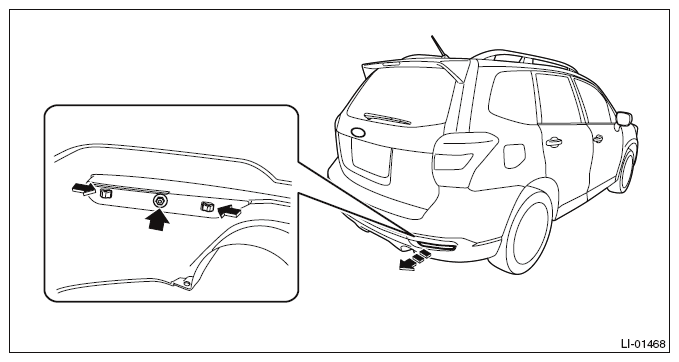

Fig 1: Removing Reflex Reflector Assembly
G09484290Courtesy of SUBARU OF AMERICA, INC.
