Main Switch

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim. >
Remove the panel - power window main switch.
CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
1. Remove the screws and disconnect the connector.

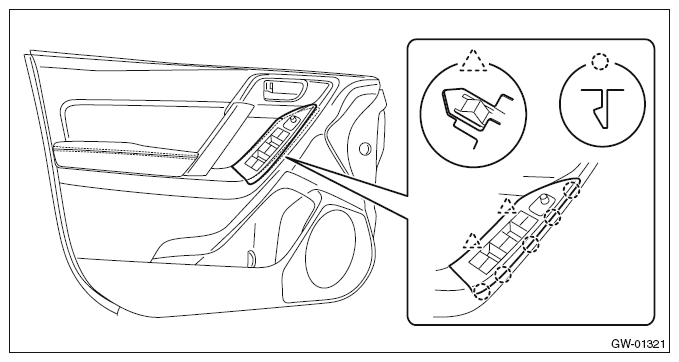

  Fig 1: Locating Power Window Main Switch Panel And Mounting Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws, and then remove the panel - power window main switch.

  Fig 2: Locating Power Window Main Switch Panel Claws
  Courtesy of SUBARU OF AMERICA, INC.
3. Release the claws, and then remove the switch - power window main.

  Fig 3: Locating Power Window Main Switch Claws
  Courtesy of SUBARU OF AMERICA, INC.
