Starting System & Charging System: Generator: Installation

Install in the reverse order of removal.

CAUTION: Check and adjust the V-belt tension. < Ref. to INSPECTION , V-belt. >

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

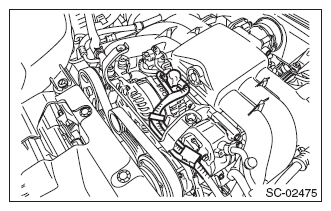

Fig 1: Locating Generator Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

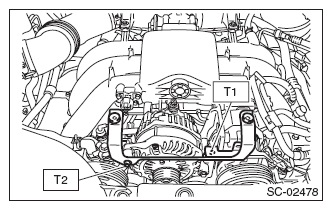

Fig 2: Generator Bolts With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

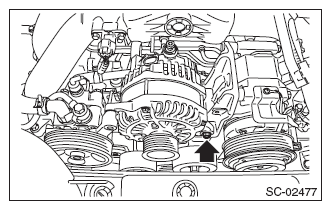

Fig 3: Identifying Generator Connector

Courtesy of SUBARU OF AMERICA, INC.
