Steering Wheel And Column

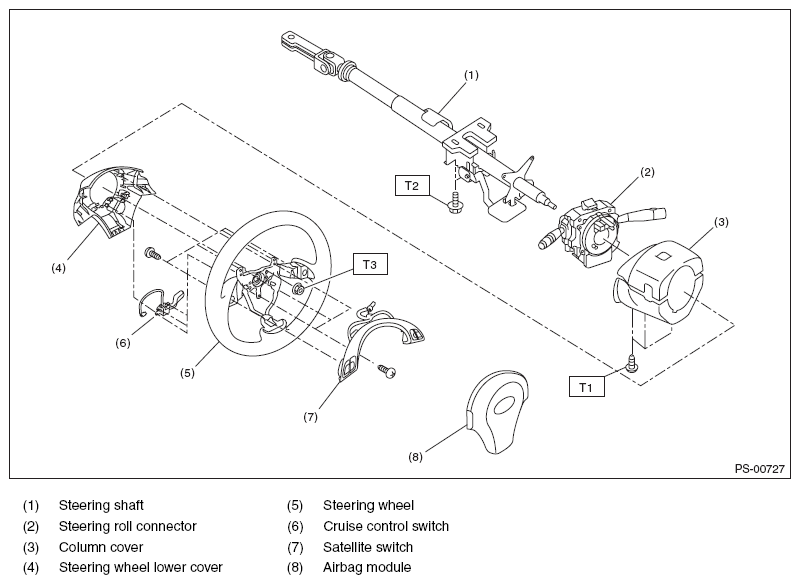

Fig 1: Steering Wheel And Column Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.2 (0.12, 0.89)

T2: 20 (2.0, 14.8)

T3: 45 (4.6, 33.2)
