Control Valve

Disconnect the pipes A and B from gearbox.
Secure the gearbox removed from vehicle in a vise using ST.
ST1 926200000 STAND

ST2 34199AG000 BOSS D

CAUTION: Secure the gearbox in a vise using ST as shown in the figure. Do not secure the gearbox without this ST.

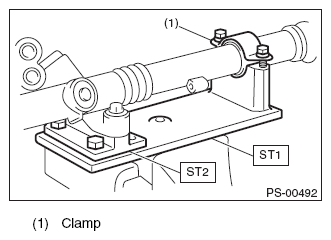

Fig 1: Securing Gearbox In Vise Using ST
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, loosen the lock nut.
ST 926230000 SPANNER

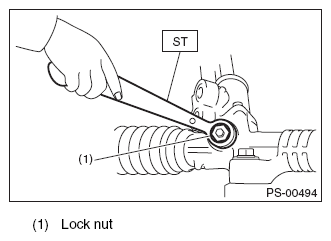

Fig 2: Loosening Lock Nut Using ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the adjusting screw until it can no longer be tightened.

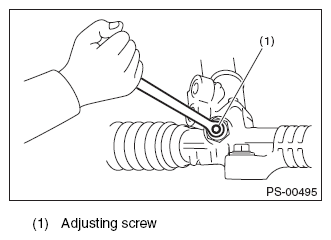

Fig 3: Tightening Adjusting Screw
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting screw, and remove the spring and sleeve.
Remove the two bolts securing valve assembly.

Fig 4: Removing Valve Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Carefully draw out the input shaft and remove the valve assembly.

Fig 5: Removing Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Put a vinyl tape around the spline portion, and slide the dust cover to remove.

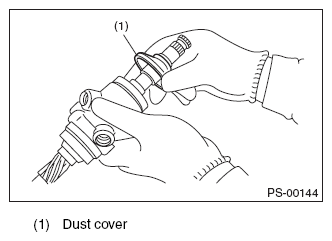

Fig 6: Sliding Dust Cover
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the pinion and valve assembly from valve housing.

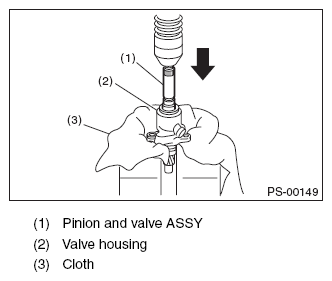

Fig 7: Removing Pinion And Valve Assembly From Valve Housing Using Press
Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, remove the bushing and oil seal from the valve housing.
ST 34199AG090 INSTALLER & REMOVER
CAUTION:
- Do not apply a force to the end surface of valve housing.
- Do not reuse the oil seal after removal.

  Fig 8: Removing Bushing And Oil Seal From Valve Housing Using ST
  Courtesy of SUBARU OF AMERICA, INC.
Using a snap ring pliers, remove the snap ring, valve, oil seal and back-up washer.
CAUTION: Be careful not to scratch the pinion and valve assembly.

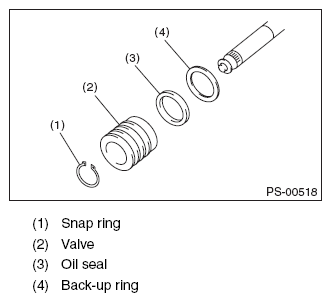

Fig 9: Identifying Snap Ring, Valve, Oil Seal And Back-Up Washer
Courtesy of SUBARU OF AMERICA, INC.
